MS Perforated Cable Trays
MS Perforated Cable Trays Manufacturer
Reliable MS Perforated Cable Tray Solutions by Shree Jagannath
Sree Jagannath Engineering is a trusted MS Perforated Cable Tray Manufacturer in India, offering durable, cost-effective, and efficient cable management solutions for industrial and commercial electrical installations. As an experienced Cable Tray Manufacturer, we design and manufacture MS perforated cable trays that provide structured cable routing, adequate ventilation, and long-term performance.
We supply MS Perforated Cable Trays across West Bengal, Assam, Bihar, Jharkhand, Odisha, Chhattisgarh, Manipur, Mizoram, Nagaland, Meghalaya, Rajasthan, Madhya Pradesh, Maharashtra, Uttar Pradesh, Gujarat, Karnataka, Andhra Pradesh, Tamil Nadu (Chennai), Hyderabad, Bangalore, Arunachal Pradesh, Tripura, Kerala, and J&K, ensuring timely delivery and consistent quality across PAN India locations.
What is an MS Perforated Cable Tray?

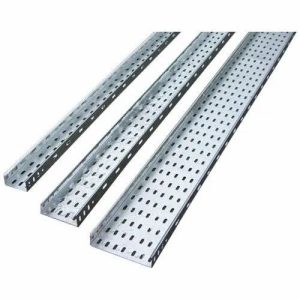

An MS Perforated Cable Tray is manufactured from high-quality mild steel (MS) with uniformly distributed perforations that allow airflow, heat dissipation, and easy cable inspection. This design provides better cable support compared to ladder trays for control and instrumentation wiring.
As a reliable MS Perforated Cable Tray Manufacturer, Sree Jagannath Engineering ensures precise perforation patterns, smooth edges, and strong fabrication for safe cable installations.
Key Features
- Cost-effective solution
- High corrosion resistance (with suitable finishes)
- Long service life
- Excellent build quality
- High demand across industries
- High tensile strength and load capacity
Technical Chart – MS Perforated Cable Tray
Parameter | Specification / Range |
Material | Mild Steel (CRCA / GI Sheet) |
Tray Width | 50 mm to 600 mm |
Tray Depth | 25 mm, 50 mm, 75 mm, 100 mm |
Tray Length | Standard 2 m / 3 m (custom lengths available) |
Side Rail Height | 25 mm to 100 mm |
Side Rail Thickness | 1.2 mm – 2.5 mm |
Bottom Thickness | 1.0 mm – 2.0 mm |
Perforation Type | Round / Slot holes |
Perforation Size | 6 mm – 10 mm diameter (round), 10 x 30 mm (slots) |
Center-to-Center Hole Distance | 25 mm – 50 mm |
Finish | Powder Coated / Pre-Galvanized / Hot-Dip Galvanized |
Load Capacity | Light, Medium, Heavy Duty (as per design) |
Standard Bend Radius | 300 mm – 450 mm |
Supports | Wall Brackets, Cleats, Hangers |
Accessories | Elbows, Tees, Reducers, Covers, Splice Plates |
Compliance | IS 8623 / IEC 61537 / BS 4568 |
Additional Notes:
- Perforated trays are used to provide ventilation for cablesand reduce heat buildup.
- Load capacity depends on tray width, depth, material thickness, and span between supports.
- Powder-coated trays provide anti-corrosion protectionfor indoor use, while galvanized trays are suitable for outdoor or humid environments.
- Custom sizes and special fabricationavailable for industrial, commercial, and data center applications.
Trusted Manufacturer & Supplier Across India
These trays are ideal for organized cable routing, easy inspection, and simplified maintenance. Optional covers are available for enhanced protection and installation safety. As a reliable MS Perforated Cable Tray Manufacturer in India, we focus on delivering solutions that combine performance with value. We offer a comprehensive range of Perforated Cable Trays in multiple surface finishes, including:
- Hot Dip Galvanized
- Pre-Galvanized
- Powder Coated
- Electroplated
- Painted
Precision Design & Industry-Compliant Standards
Our Perforated Cable Trays are engineered with precision to meet industry safety and quality benchmarks. Designed to withstand heavy cable loads and varying environmental conditions, they offer dependable performance in both indoor and outdoor installations. The robust construction ensures long-term reliability across multiple applications.
Applications
Our MS Perforated Cable Trays are widely used in:
- Electrical wiring systems in buildings
- Industrial plants and factories
- Power distribution and control systems
- Communication and data cabling networks
They provide reliable support for insulated electrical cables while allowing flexibility for future expansion, modification, or maintenance.
MS Perforated Cable Tray vs Ladder Cable Tray
Compared to MS Ladder Cable Trays, MS perforated trays offer better cable support and organized routing for smaller and medium-sized cables. Ladder trays are preferred for heavy power cables, while perforated trays are ideal for control and instrumentation wiring.
Service Coverage
We supply and support SS Ladder Type Cable Tray systems across: Rajasthan, Madhya Pradesh, Maharashtra, Uttar Pradesh, Gujarat, Karnataka, Andhra Pradesh, West Bengal, Assam, Bihar, Jharkhand, Odisha, Chhattisgarh, Tamil Nadu (Chennai), Hyderabad, Bangalore, Manipur, Mizoram, Nagaland, Meghalaya, Arunachal Pradesh, Tripura, Kerala, and Jammu & Kashmir (J&K).
Why Choose Shree Jagannath Engineering Works?
- Consistent product quality with strict quality control
- Advanced manufacturing technology and skilled workforce
- Custom and standard perforated cable tray solutions
- Competitive pricing without compromising durability
- Proven track record with satisfied clients
Whether you need standard MS perforated cable trays or customized solutions, we have the expertise to meet your exact requirements.
FAQs – MS Perforated Cable Tray
Q1: Can MS perforated cable trays be used outdoors?
Yes, when hot dip galvanized or powder coated, they are suitable for outdoor use.
Q2: Which finish is best for industrial environments?
Hot dip galvanized finish is recommended for harsh industrial conditions.
Q3: Do you offer customized perforated trays?
Yes, we manufacture MS perforated trays as per drawings and specifications.
Contact Sree Jagannath Engineering
If you are looking for a reliable MS Perforated Cable Tray Manufacturer in India, contact Sree Jagannath Engineering today for pricing, drawings, and technical support.
Phone Number – +91 6289798698
Email Id – sjewtapan@gmail.com
